Converters Wiring System
Van Converters Plug & Play Electrical System
These products are part of the BCA Electrical converters' wiring harness system which vastly simplifies the process of installing or replacing an electrical system in a caravan or motorhome.
All the major components of the electrical system are pre-wired with plug and play connectors making it far simpler to build and install the electrical system in a van conversion project.

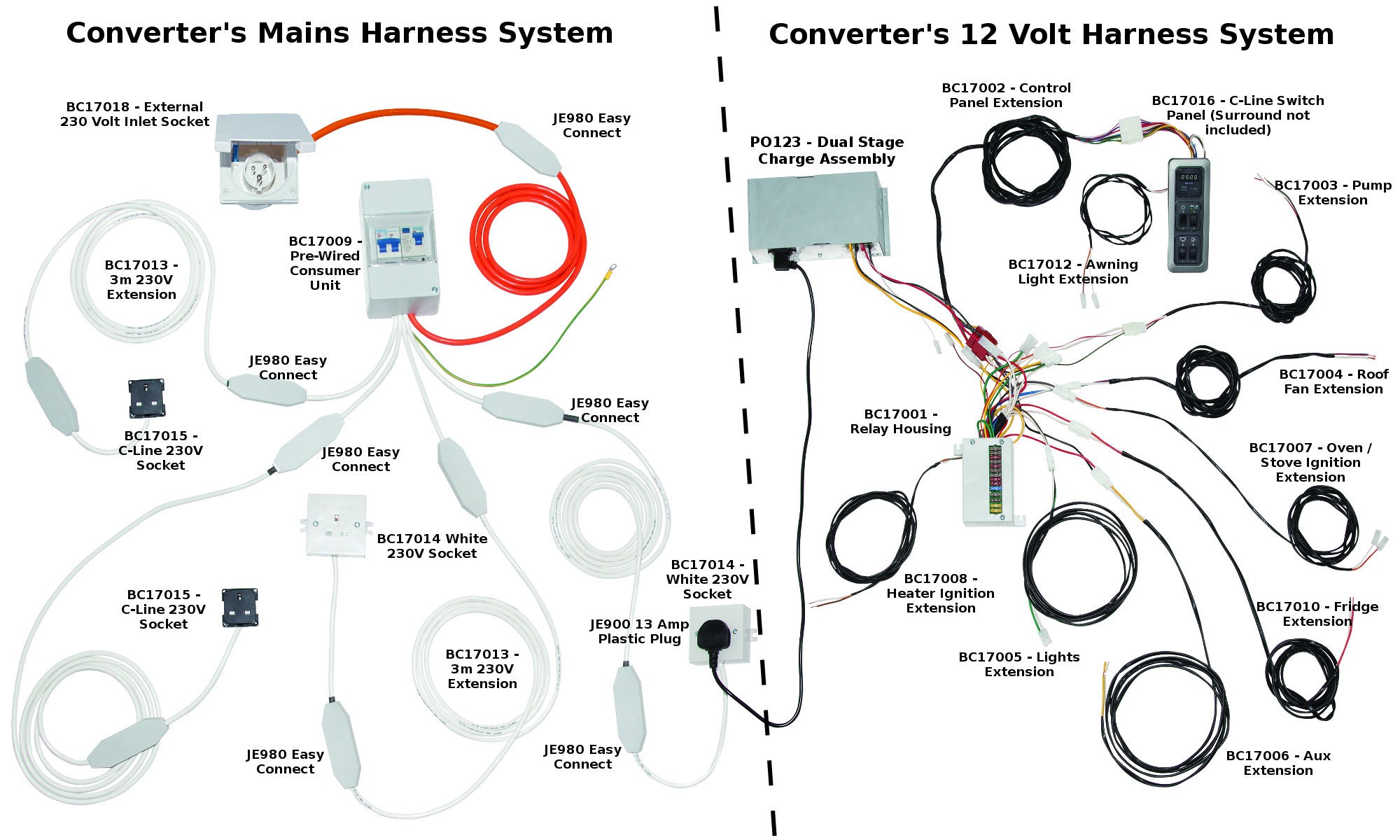

Click the image to expand the system layout. Identify the parts you need and search by part number or browse the items below.
Converter's Mains Harness System
For the Mains Harness System purchase
- 1 x Mains Inlet Socket - BC17018
- 1 x Pre-Wired Consumer Unit - BC17009
- 1 x Easy Connect Box - JE980
For EACH mains socket purchase
- 2 x Easy Connect Box JE980
- 1 x 3m 230V Extension BC17013.
- Either, 1 x White 230V Socket - BC17014, OR, 1 x C-Line 230V Socket BC17015 with C-Line surround and backbox of your choice.
Converter's 12 Volt Harness System
For 12 Volt Harness System purchase;
- 1 x PO123 Dual Stage Charger and Transformer
- 1 x Relay Housing (BC17001)
- 1 x C-Line Switch Control Panel (BC17016)
- 1 x Control Panel Extension (BC17002)
This provides 12V power supply and control of your 12V system.
For each 12 Volt appliance you want to power purchase the appropriate accessory extensions.
Awning Light Extension Harness - BC17012
Awning Light Extension loom to connect the awning light to the Switch Control Panel on the BCA Electrical converters wiring harness system.
only £3.95
Inc. VAT
BCA Prewired C-Line 13A Mains Socket - BC17015
C-Line 13 amp, 3 pin mains socket complete with recessed back box and prewired with quick fit connector for easy installation with BCA Converter's Wiring System and BCA Converter's PDU Harness Kit.
only £11.50
Inc. VAT
BCA Prewired Extension Cable 3m - BC17013
3m mains extension lead with pre-fitted quick connectors to easily fit to mains accessories in BCA Converter's Wiring System and BCA Converter's PDU kit.
only £14.99
Inc. VAT
Caravan Mains Electric Inlet - Surface Mount Prewired - BC18033
Prewired, surface mounting mains electric inlet point for caravans and campervans. Prewired with quick connector for fitting to BCA Converter's Wiring System and BCA PDU Converter's Harness Kit.
only £8.99
Inc. VAT
Converters C-Line Switch Control Panel - BC17016
Pre-wired switch panel for use with BCA Electrical campervan converters harness system. Provides switch control of 12 Volt functions and battery status check and includes C-Line switch plates.
only £55.00
Inc. VAT
Converters Relay Housing - BC17001
Complete relay housing and fuse board to control power distribution in the 12 Volt system in a caravan, campervan or motorhome. This pre-wired unit is compatible with other components of BCA Electrical campervan converters harness system for simple plug and play installation of 12 volt system in a van conversion project.
only £89.99
Inc. VAT
Easy Connect Cable Joining Box Light Grey
Powerpart Easy Connect "Coffin Box" cable joining box for safe housing of electrical cable connectors in caravans and campervan conversions.
only £3.98
Inc. VAT
Heater Ignition Extension Harness - BC17008
Heater Extension loom to connect the heater ignition to the Relay Housing on the BCA Electrical converters wiring harness system.
only £4.99
Inc. VAT
Interior Light Extension Harness - BC17005
Light Extension loom to connect the interior lights to the Relay Housing on the BCA Electrical converters wiring harness system.
only £10.00
Inc. VAT
Mains Electric Inlet - Flush Fit Prewired Black BC18031
Square, prewired, recess mounting mains electric inlet box with external flap for caravan and campervan. Prewired with quick connector for fitting to BCA Converter's Wiring System and BCA PDU Converter's Harness Kit.
only £19.99
Inc. VAT
Mains Electric Inlet - Flush Fit Prewired White BC17018
Square, prewired, recess mounting mains electric inlet box with external flap for caravan and campervan. Prewired with quick connector for fitting to BCA Converter's Wiring System and BCA PDU Converter's Harness Kit.
only £19.99
Inc. VAT
Oven Ignition Extension Harness - BC17007
Oven Extension loom to connect the oven or hob ignition to the Relay Housing on the BCA Electrical converters wiring harness system.
only £4.49
Inc. VAT
Powerpart Caravan Transformer & 3 Stage Charger
Caravan power unit transformer converts 230V AC input to DC output to run your caravan 12V system.
Powerpart PO123 provides up to 20A / 276W output and includes battery recharge function.
only £169.99
Inc. VAT
Prewired Consumer Unit - BC17009
Powerpart Standard Mains Consumer Unit which is prewired for easy connection to other accessories which form part of the BCA Convert's Wiring System. Fitted with quick connectors to fit to prewired mains inlet and BCA prewired mains sockets.
only £74.99
Inc. VAT
Wiring Harness Connector - VF04
4 strand wiring harness connector for 12 volt power systems in caravan and motorhome. Connector includes both plug and socket so you can make up your own wiring loom with upto 4 cores.
only £2.20
Inc. VAT
Wiring Harness Connector - VF06
6 strand wiring harness connector for 12 volt power systems in caravan and motorhome. Connector includes both plug and socket so you can make up your own wiring loom with upto 6 cores.
only £2.69
Inc. VAT
