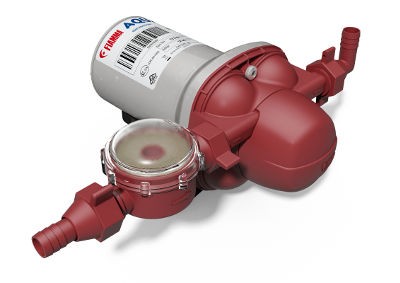

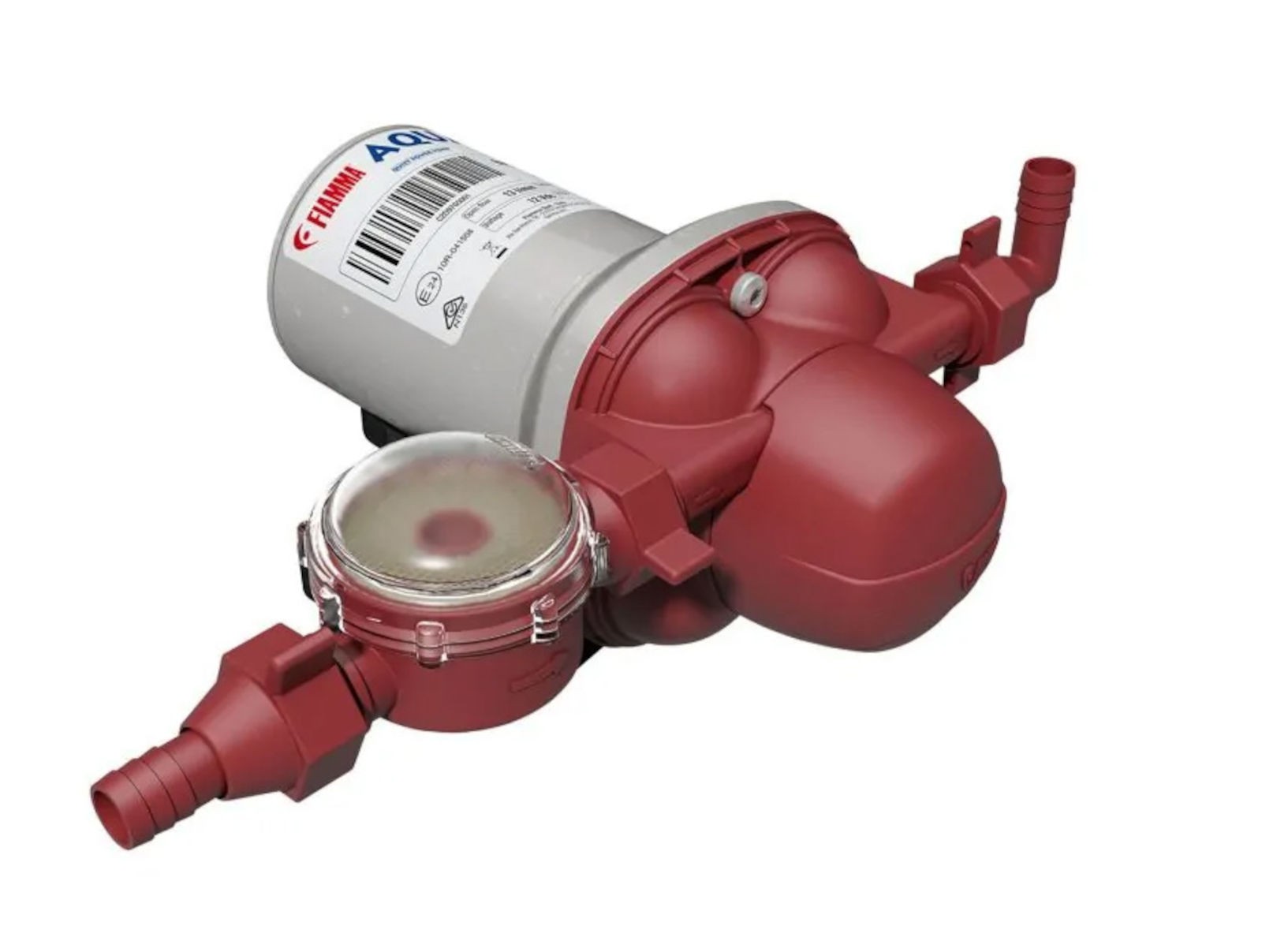

Fiamma Aqua F Pump - 13L/m

Fiamma aqua F water pump 13L.

A self-priming diaphragm pump with 4 chambers for fresh water system on caravans and motorhomes. The Fiamma Aqua F pump is designed for constant and high flow rate. Equipped with innovative inner membrane made from a single piece to ensure watertight seal, with anti-vibration base, brass pressure switch with fixed calibration and the supplied with an external filter for easy maintenance. Enhanced motor with high efficiency, to ensure high capacity with low power consumption.

• More balanced pressure

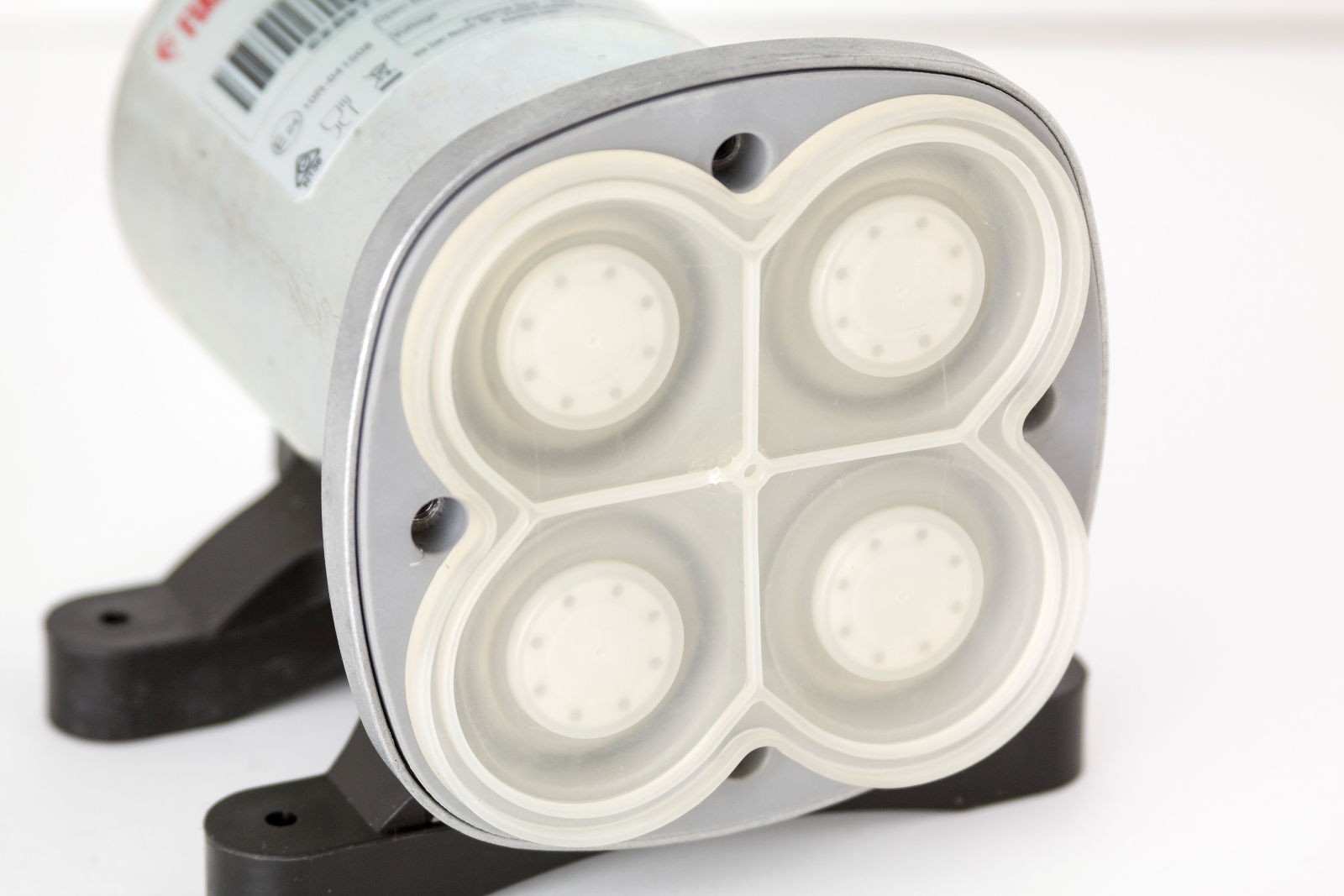

• Rubber membrane in a single piece
• Compact mechanical transmission
• Anti vibration base 12V

Installation

Aqua F pump can be installed in any position and can run dry without damage. Connects to the water system with 1/2 inch (13mm) inner diameter hoses with the supplied fittings, or to semi-rigid-pipe system via optional push fit connector with 1/2 inch female BSP thread.

Versions

This version of the Aqua F pump has a 13l/m flow rate and is recommended for standard circuits, where a higher flow rate is required.

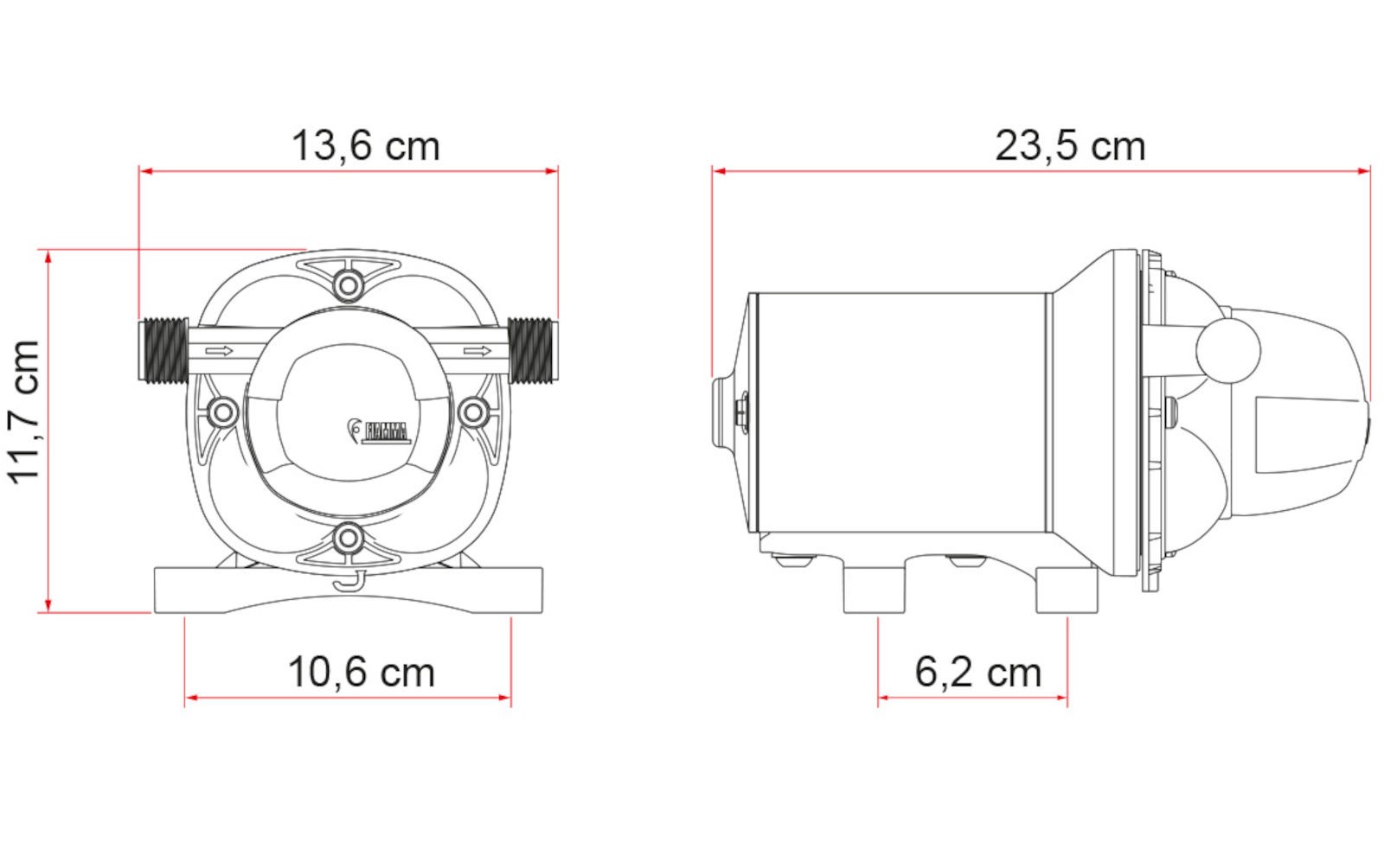

Specification

Downloads
