Sargent 7" Touchscreen Kit With MC100, MC200 & Harnesses

Sargent 7" touchscreen kit complete with MC100 control unit, MC200 consumer unit and wiring harnesses.

This kit is a compact and flexible system allowing mounting as a single unit or separately where space is a premium.

Both the MC100 and MC200 are unique in there own way with the MC100 providing the power, and switching and monitoring for 12V accessories such as heating, lighting and water systems, whereas the MC200 provides RCD and MCB protection for 230V mains circuits.

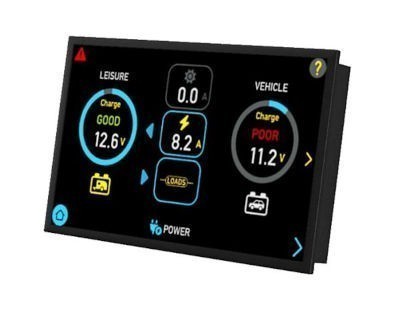

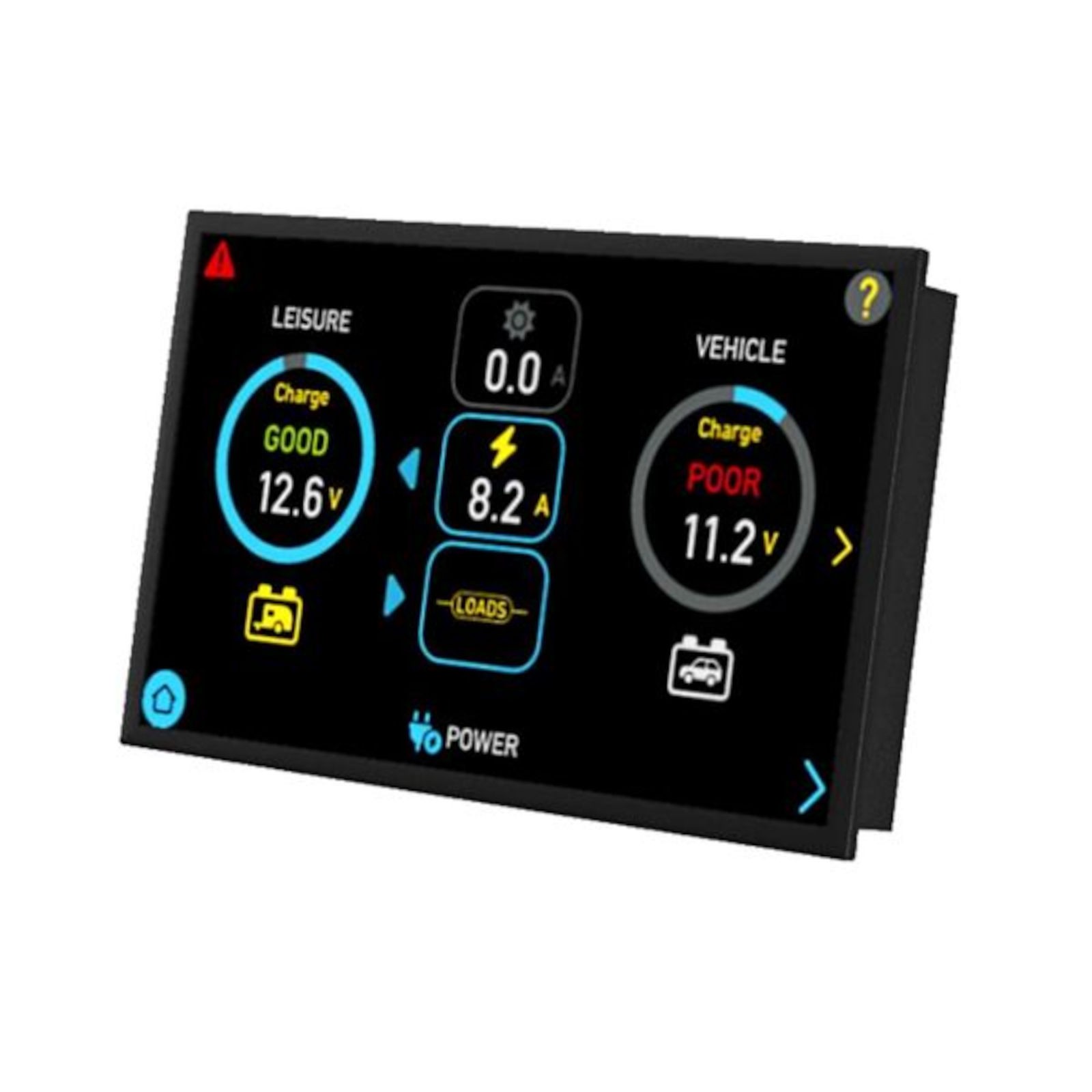

Features a colour touchscreen display which offers intuitive controls for monitoring and control of lighting, power, water and environmental sensors.

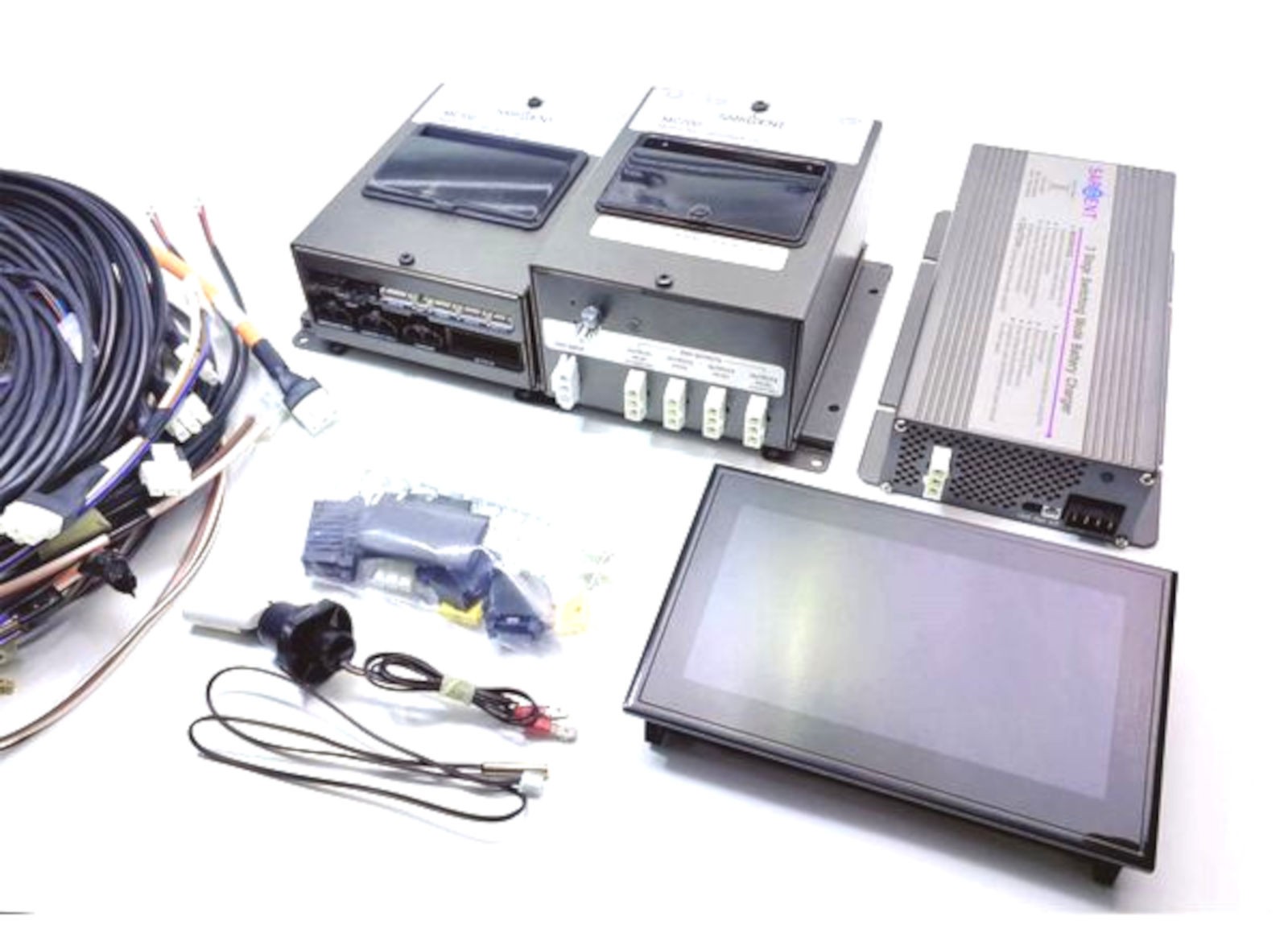

The kit comes complete with the following:

• MC100 control unit & MC200 consumer unit
• K970A touchscreen display 7"
• PX300 battery charger
• 12V and 230V wiring harnesses
• Water sensor, temperature sensor and connector and fuse kit

Specifications

Specifications for MC100 control unit

• Leisure and Vehicle Inputs: 2 x 20amp battery inputs via 2 way connectors
• Charger Input: 1 x 25amp input via 2 way connector
• Outputs: Up to 25amp total output via 8 x Blade Fuses
• Inputs (Signals): Engine run and multiple vehicle connections
• TMP Input: 1 x External Temp sensor
• Fresh & Waste Inputs: 4 x Fresh levels (25% steps), 1 x Waste level
• Switch Inputs: 2 x Momentary inputs

Specifications for MC200 consumer unit

• Input Voltage: 230V AC at 0-16A
• Input Protection: RCD: 1 x 40A, 30mA
• Output protectionL MCBs: 1 x 16amp 2 x 10amp
