Sargent K940 Touch Screen Kit

Sargent K940 flexible and compact touch screen kit.

The MC100 is the hub of the system providing power, switching and monitoring for 12V accessories for example heating, lighting and water systems.

Designed to provide RCD and MCB protection for 230V mains circuits. A colour touchscreen display offers intuitive controls for monitoring and control of Lighting, Power, Water and Environmental sensors.

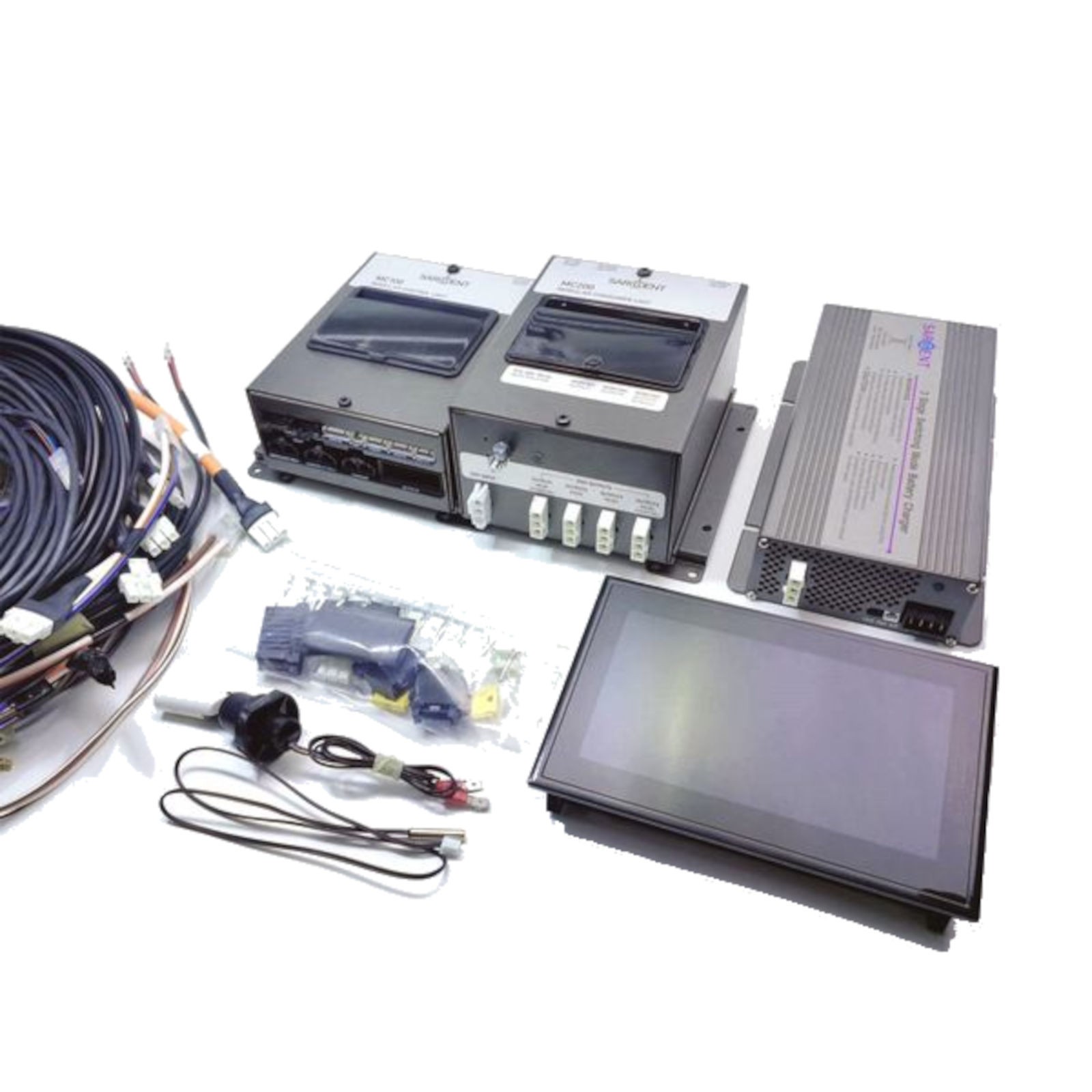

The kit comes complete with the following:

• MC100 control unit
• MC200 consumer unit

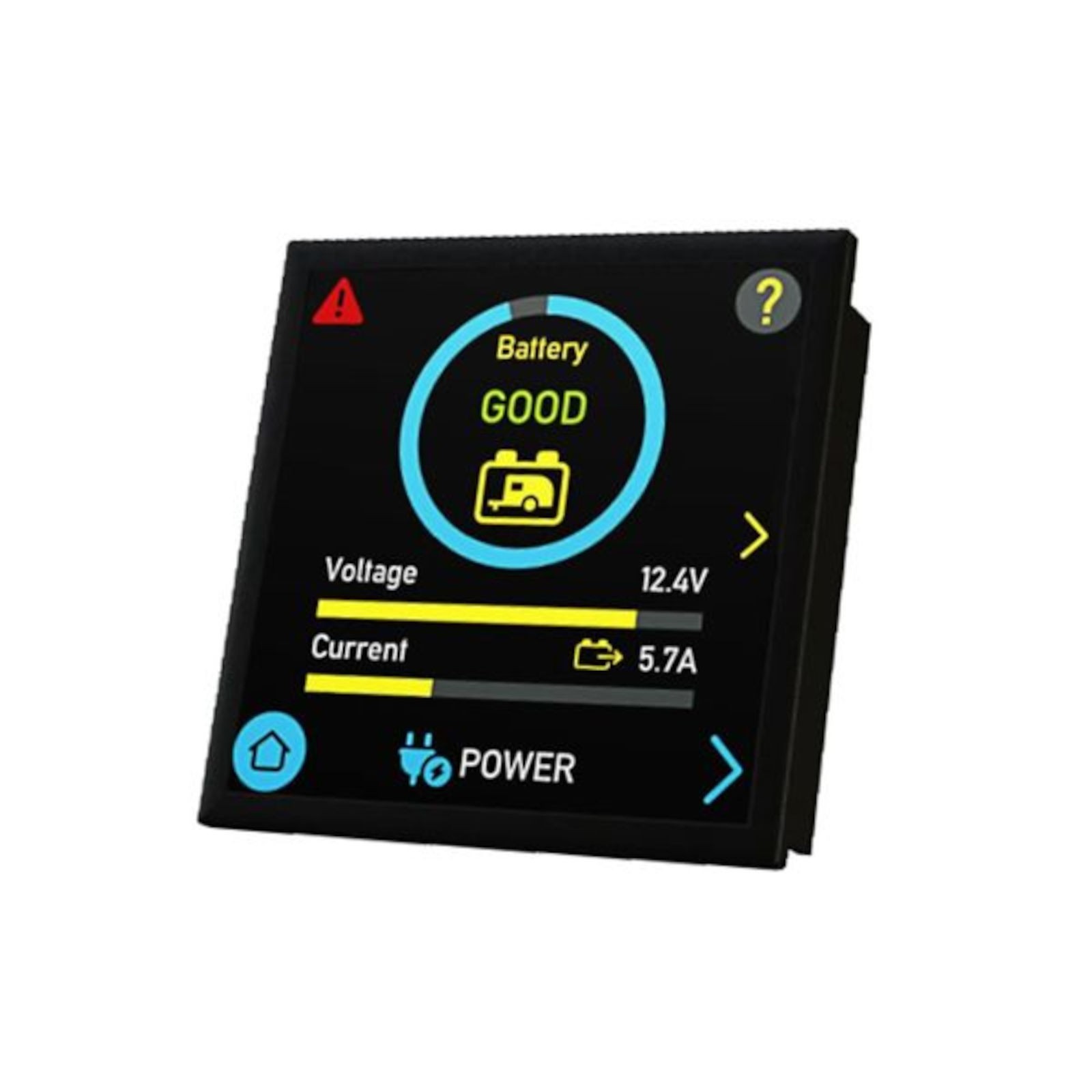

• EC940 touchscreen display 4"
• PX300 battery charger
• 12V and 230V wiring harness
• Water and temperature sensors
• Connector and fuse kit

Specifications For MC100 Control Unit

• Leisure and vehicle inputs: 2 x 20amp battery inputs via 2 way connectors
• Charger input: 1 x 25amp input via a 2 way connector
• Outputs: up to a 25amp total output via 8 x blade fuses
• Inputs (signals): engine run and multiple vehicle connections
• TMP input: 1 x external temperature sensor
• Fresh and waste water inputs: 4 x fresh levels (25% steps), 1 x waste level
• Switch inputs: 2 x momentary inputs

Specifications for MC200 Consumer Unit

• Input voltage: 230v AC at 0-16amp
• Input protection: RCD 1 x 40amp, 30mA
• Output protection: MCBs: 1 x 16amp 2 x 10amp
