Set up the stove and gas system in your campervan conversion with this package including the Thetford Topline 922 hob, gas pipe, connectors, regulator and gas bottle connection so you can set up the kitchen in your campervan.

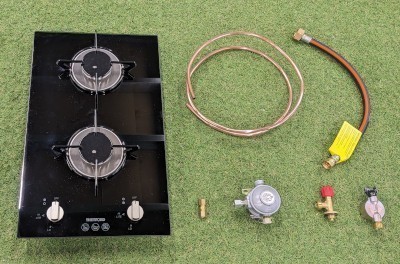

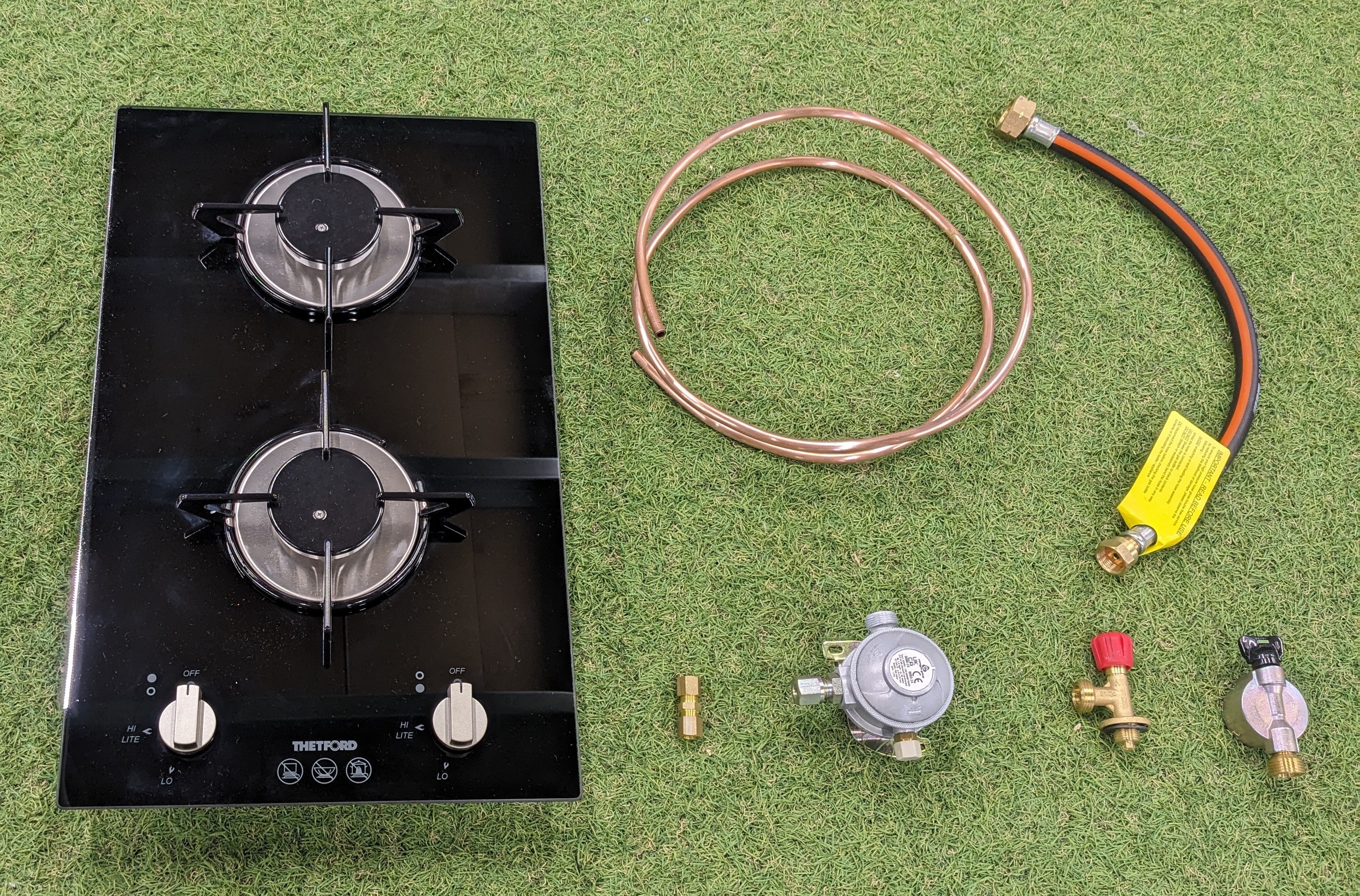

Conversion Kit Contents

Basic equipment

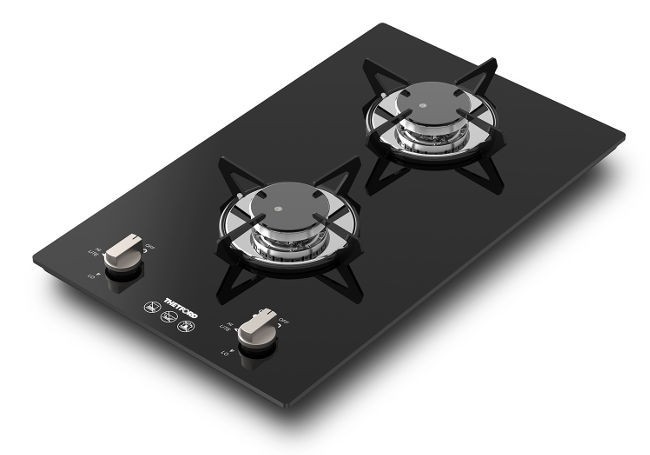

• Thetford Topline 922 hob unit

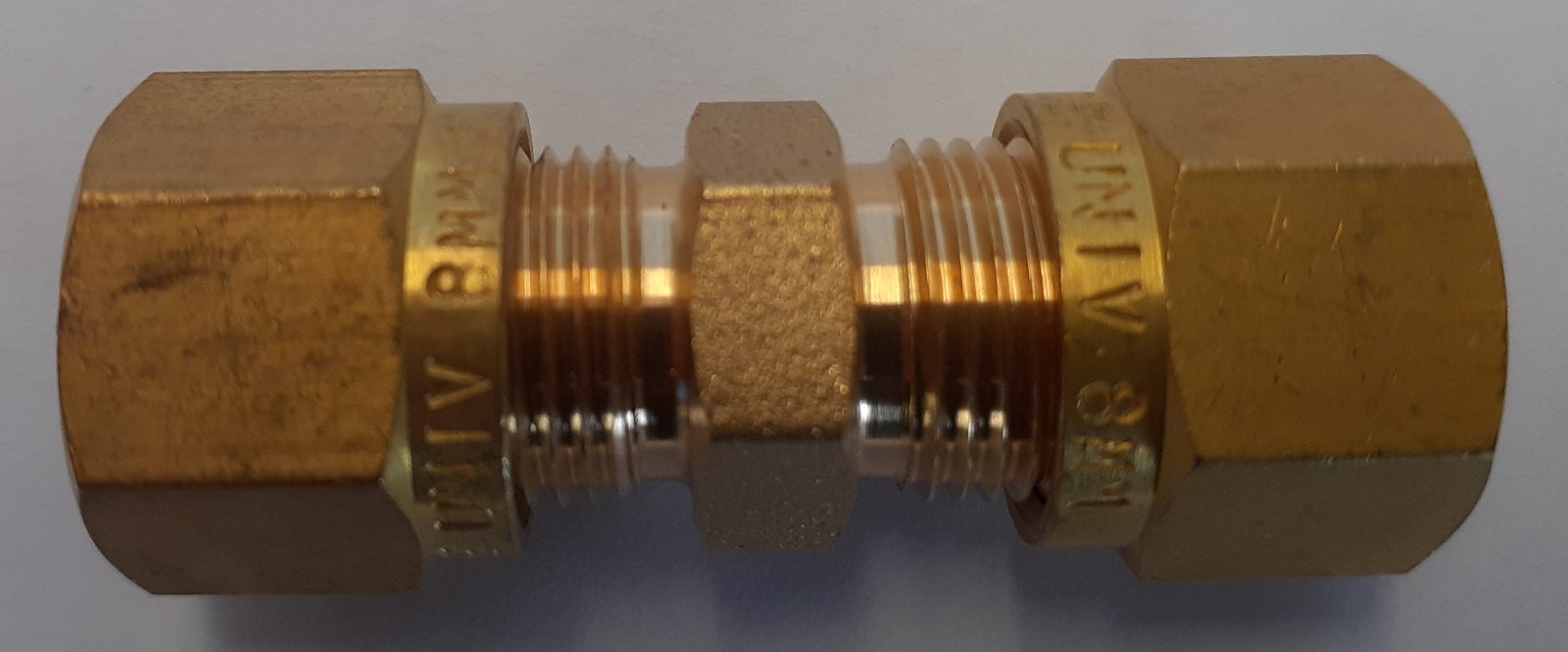

• 8mm gas pipe compression fitting

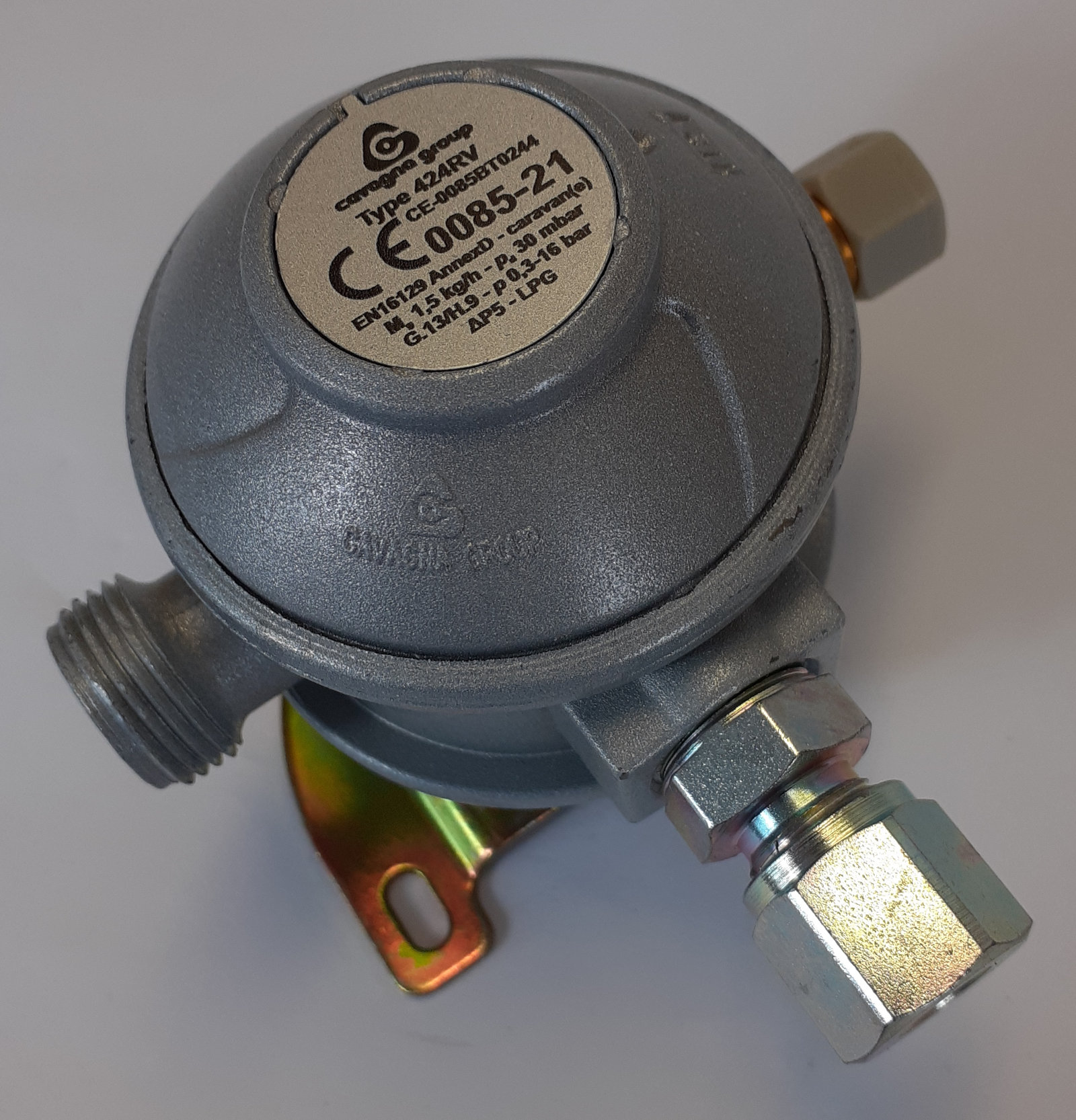

• 8mm bulkhead gas regulator

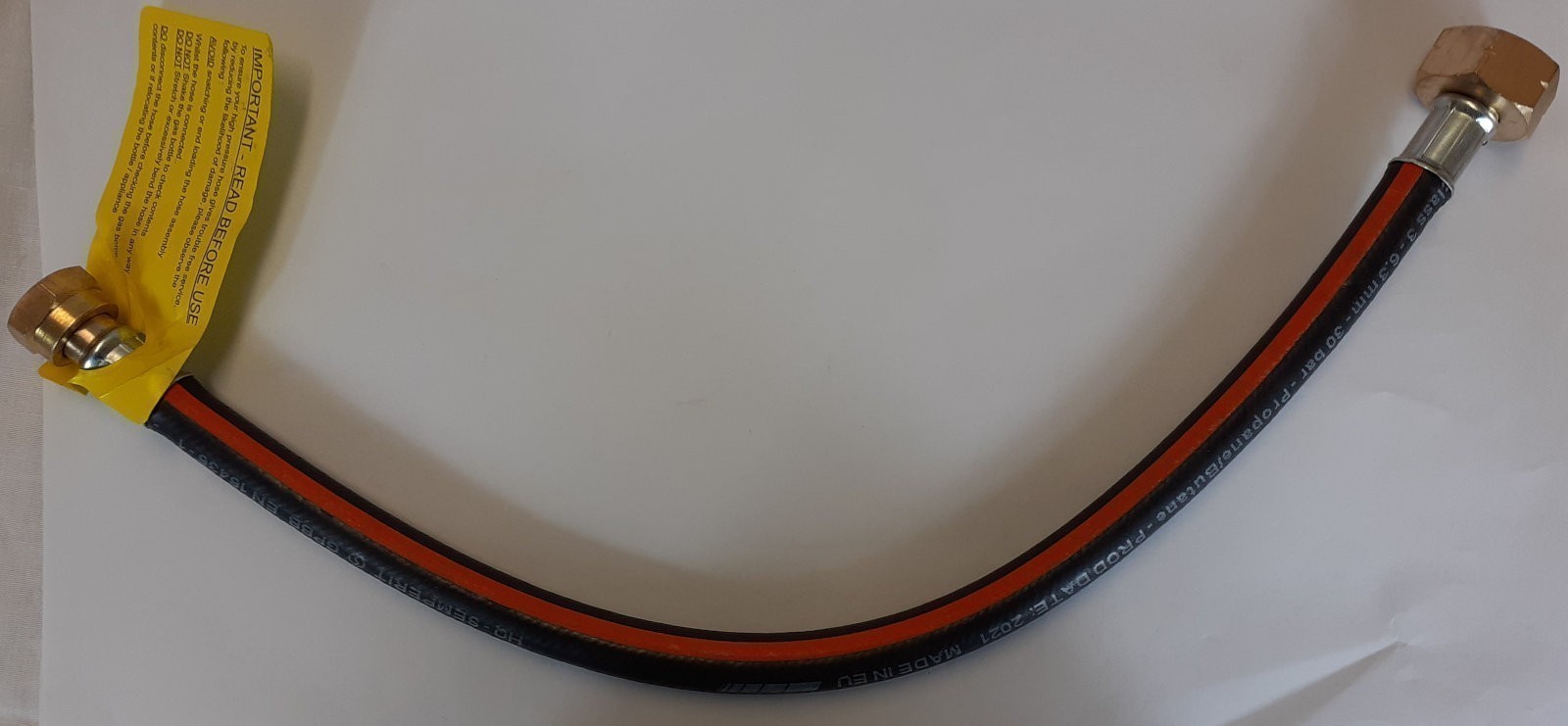

• 450mm Gas Pigtail hose (connects to 4.5kg Calor gas Butane bottle but can connect to other bottles with an adapter)

Cable and Hose - Select length required above

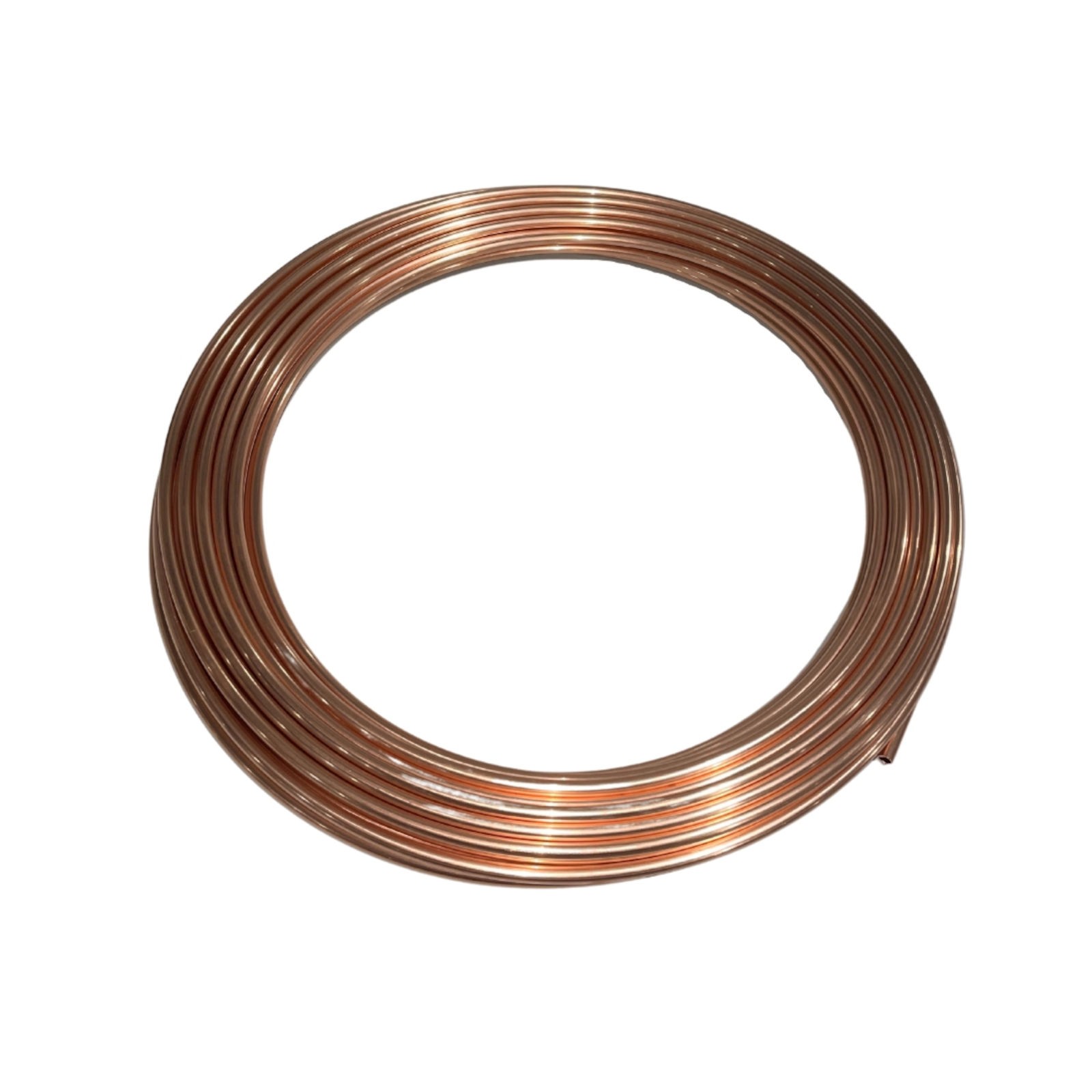

• 8mm copper gas pipe - Select length above

Optional Gas Bottle Connection

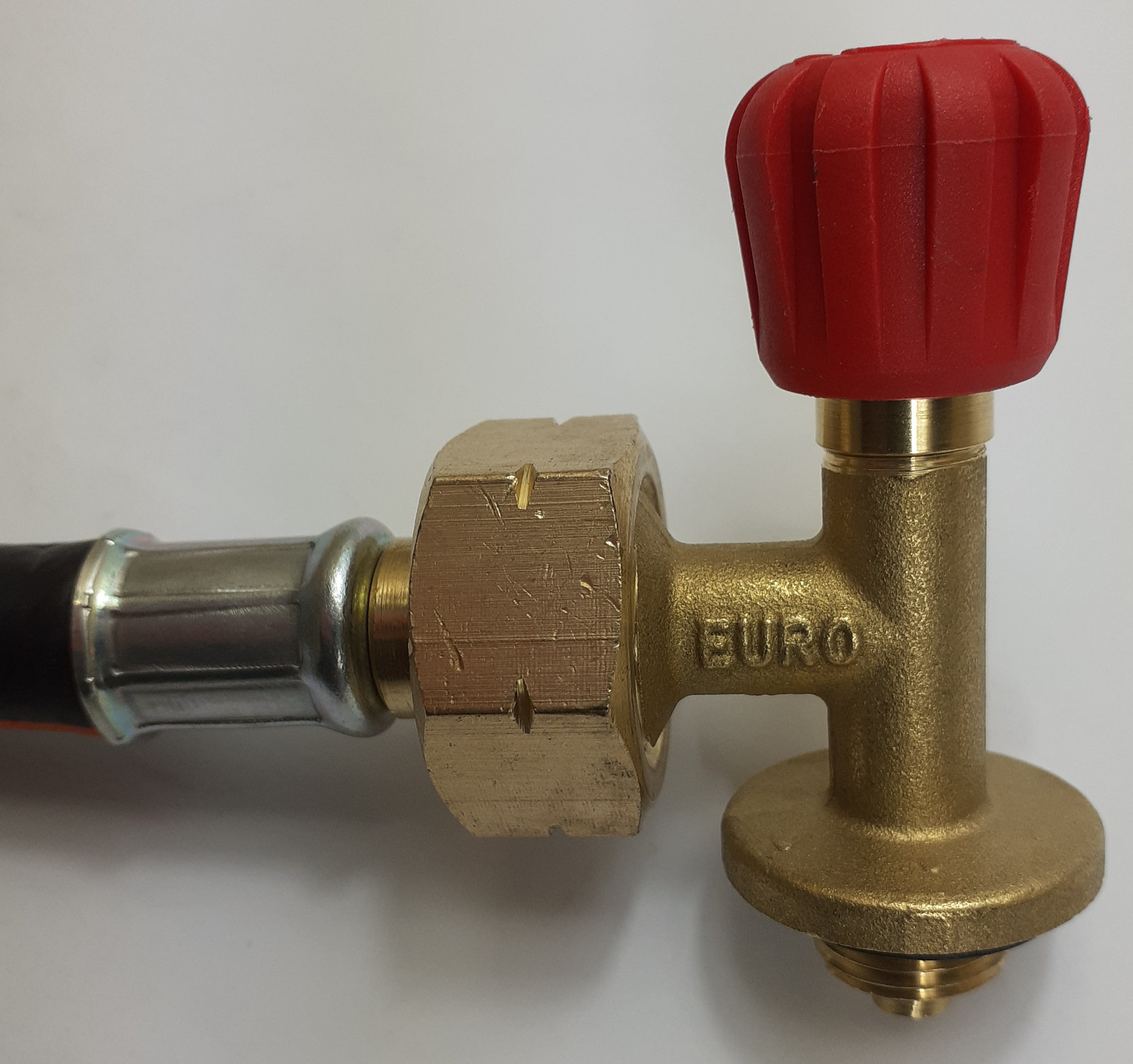

• Add a Campingaz adapter to make the pigtail from the kit fit to a Campingaz 907 gas bottle, or

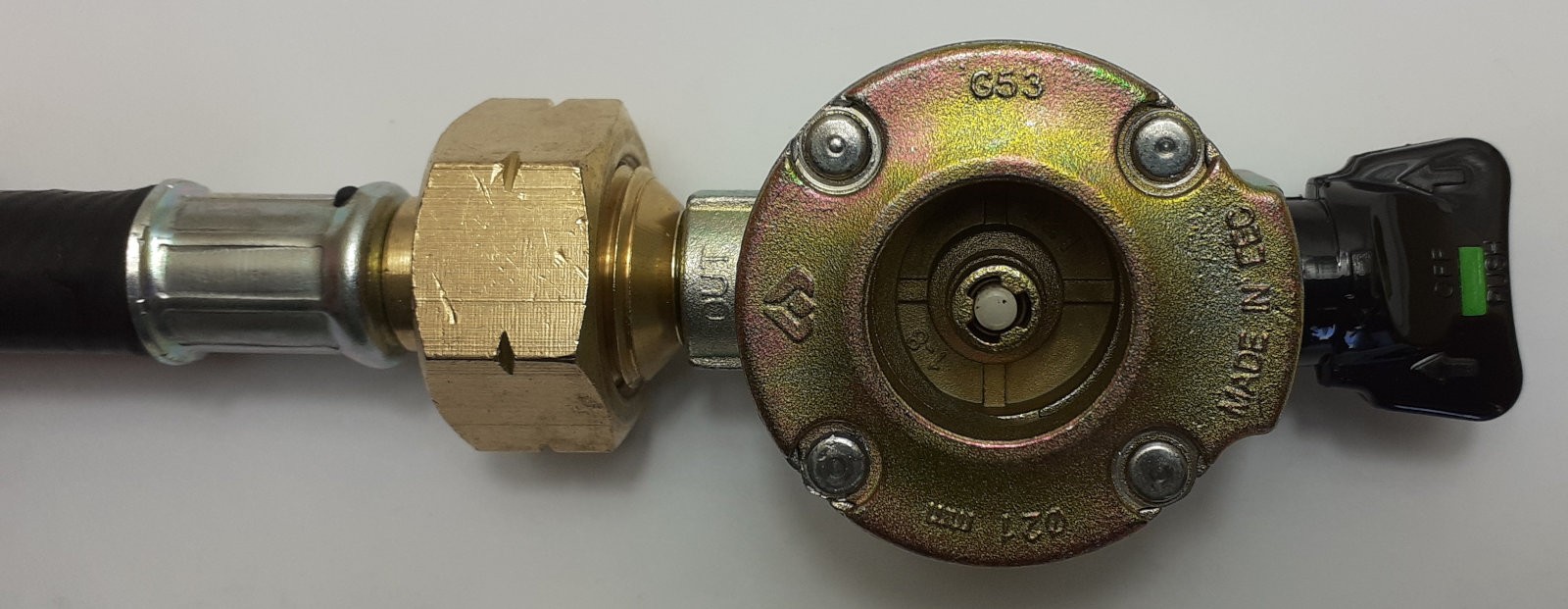

• Add a 21mm clip on adapter to make the pigtail from the kit fit to a larger Butane gas bottle

Optional Additional Items

There should be a gas drop out vent in the floor beneath the stove and in each compartment the gas pipe passes through including the locker the gas bottle is stored in. The drop out vents should go all the way through the floor of the vehicle to the outside. See related products for drop out vents.

You can also add a Campingaz 907 Gas storage locker which is large enough to fit the bottle and bulkhead regulator inside. See related products.

Copper pipework should be secured every 0.5m with rubber lined P clips. Add P clips depending on the length of copper pipe. See related products.
